NVIDIA Jetson 核心模組

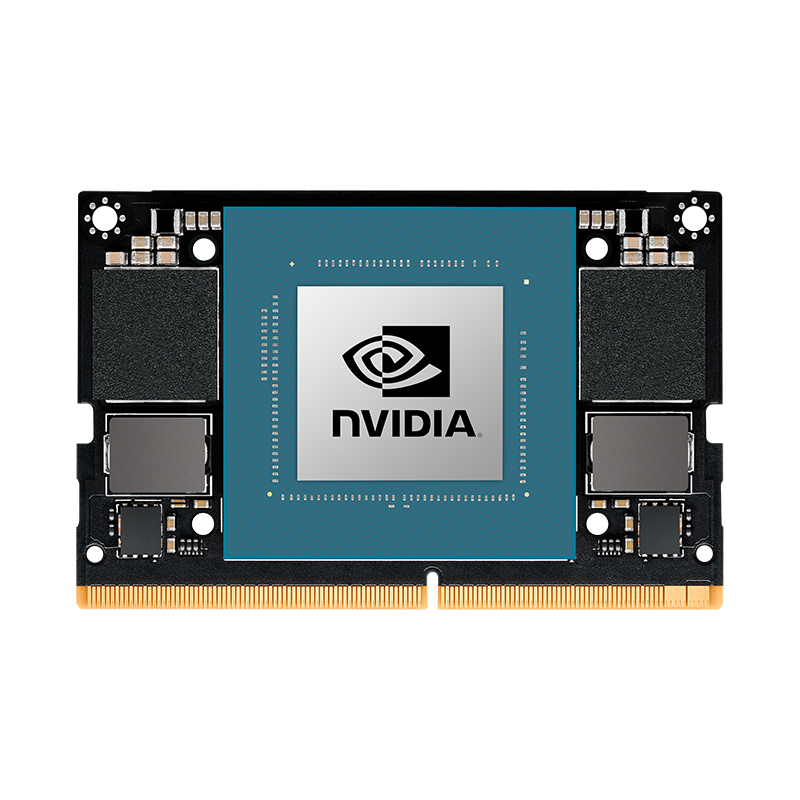

Jetson Orin NX 模組

NVIDIA Ampere architecture
with 1024 NVIDIA? CUDA? cores and 32 tensor cores
Supports external NVMe
69.6mm x 45mm
260-pin SO-DIMM connector

Jetson Orin NX 模組極其小巧，但可提供高達 100 TOPS 的 AI 性能，功率可在 10W 到 25W 之間進行配置。此模組的性能最高可達到 Jetson AGX Xavier 的 3 倍、Jetson Xavier NX 的 5 倍。

Jetson Orin NX 模組技術規格

	Jetson Orin NX 8GB	Jetson Orin NX 16GB
AI Performance	70 TOPS (INT8)	100 TOPs (INT8)
GPU	NVIDIA Ampere architecture with 1024 NVIDIA®CUDA®cores and 32 tensor cores
Max GPU Freq	765 MHz	918 MHz
CPU	6-core Arm®Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3	8-core Arm®Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
CPU Max Freq	2 GHz
DL Accelerator	1x NVDLA v2.0	2x NVDLA v2.0
DLA Max Frequency	614 MHz
Vision Accelerator	PVA v2.0
Memory	8GB 128-bit LPDDR5 102.4 GB/s	16GB 128-bit LPDDR5 102.4 GB/s
Storage	Supports external NVMe
CSI Camera	Up to 4 cameras (8 via virtual channels*) 8 lanes MIPI CSI-2 D-PHY 1.2 (20 Gbps)
Video Encode	1x 4K60 \| 3x 4K30\| 6x 1080p60 \| 12x 1080p30 (H.265) H.264, H.265, AV1
Video Decode	1x 8K30 \| 2x 4K60 \| 4x 4K30 \| 9x 1080p60 \| 18x 1080p30 (H.265) H.264, H.265, VP9, AV1
UPHY	3 x1 + 1 x4 PCIe Gen 4 3x USB 3.2 Gen2
Networking	1x GbE
Display	1x8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Other I/O	3x USB 2.0 3x UART \| 2x SPI \| 4x I2C \| 1x CAN \| DMIC \| DSPK \| 2x I2S \| 15x GPIOs
Power	10W \| 15W \| 20W	10W \| 15W \| 25W
Mechanical	69.6mm x 45mm 260-pin SO-DIMM connector

*Jetson Orin NX 的虛擬通道相關攝像頭信息并非最終信息，可能會發生變化。
