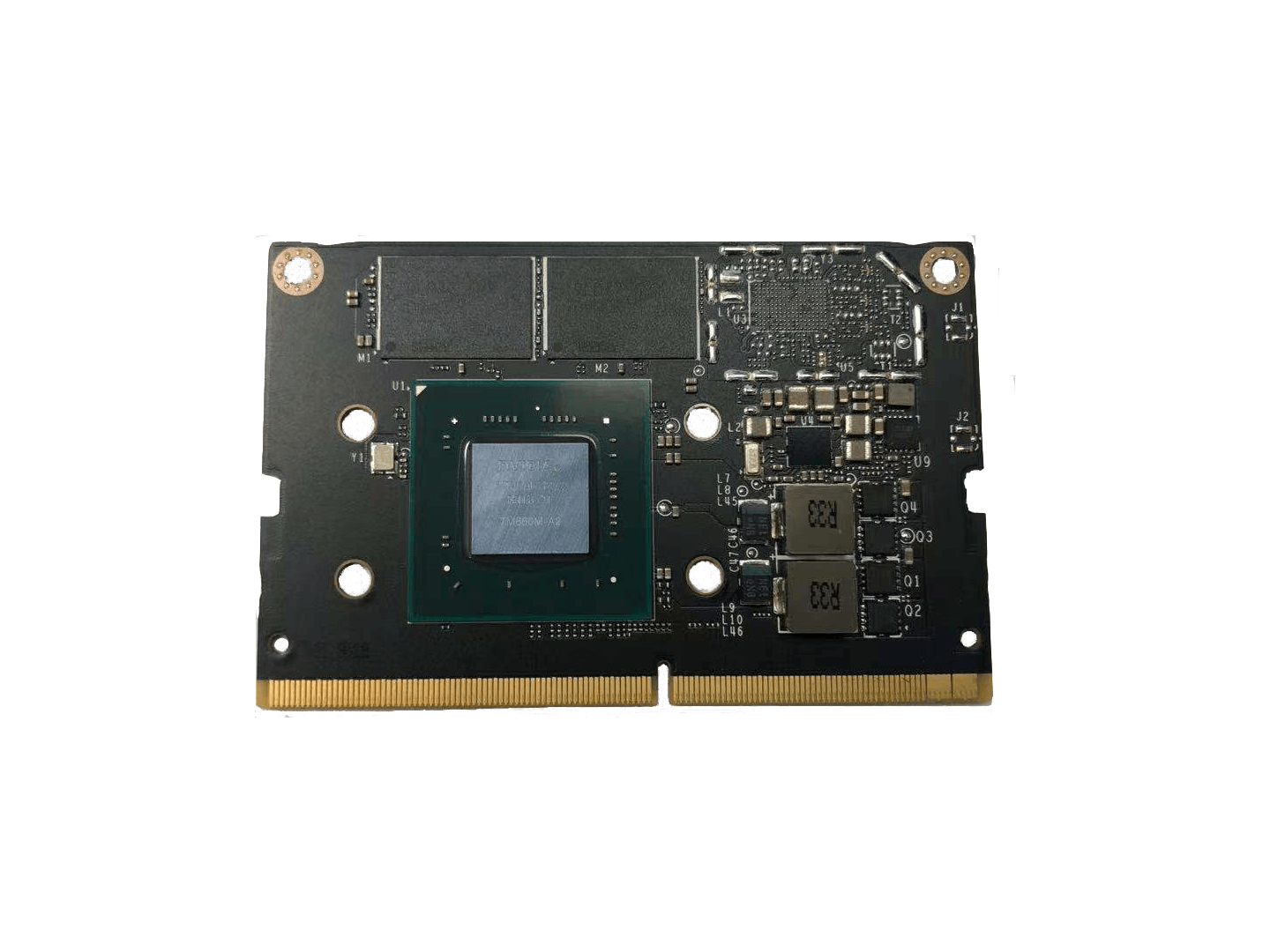

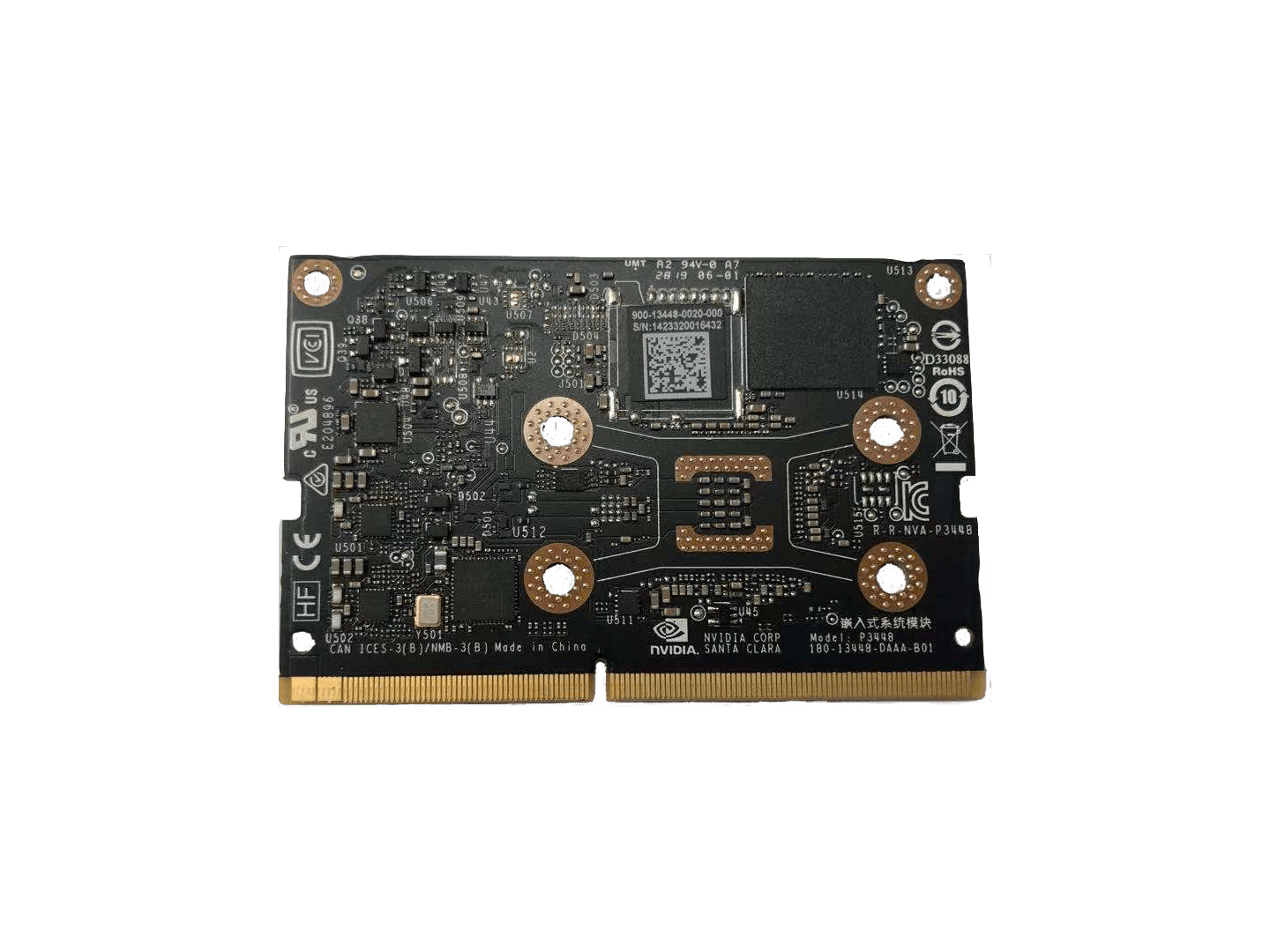

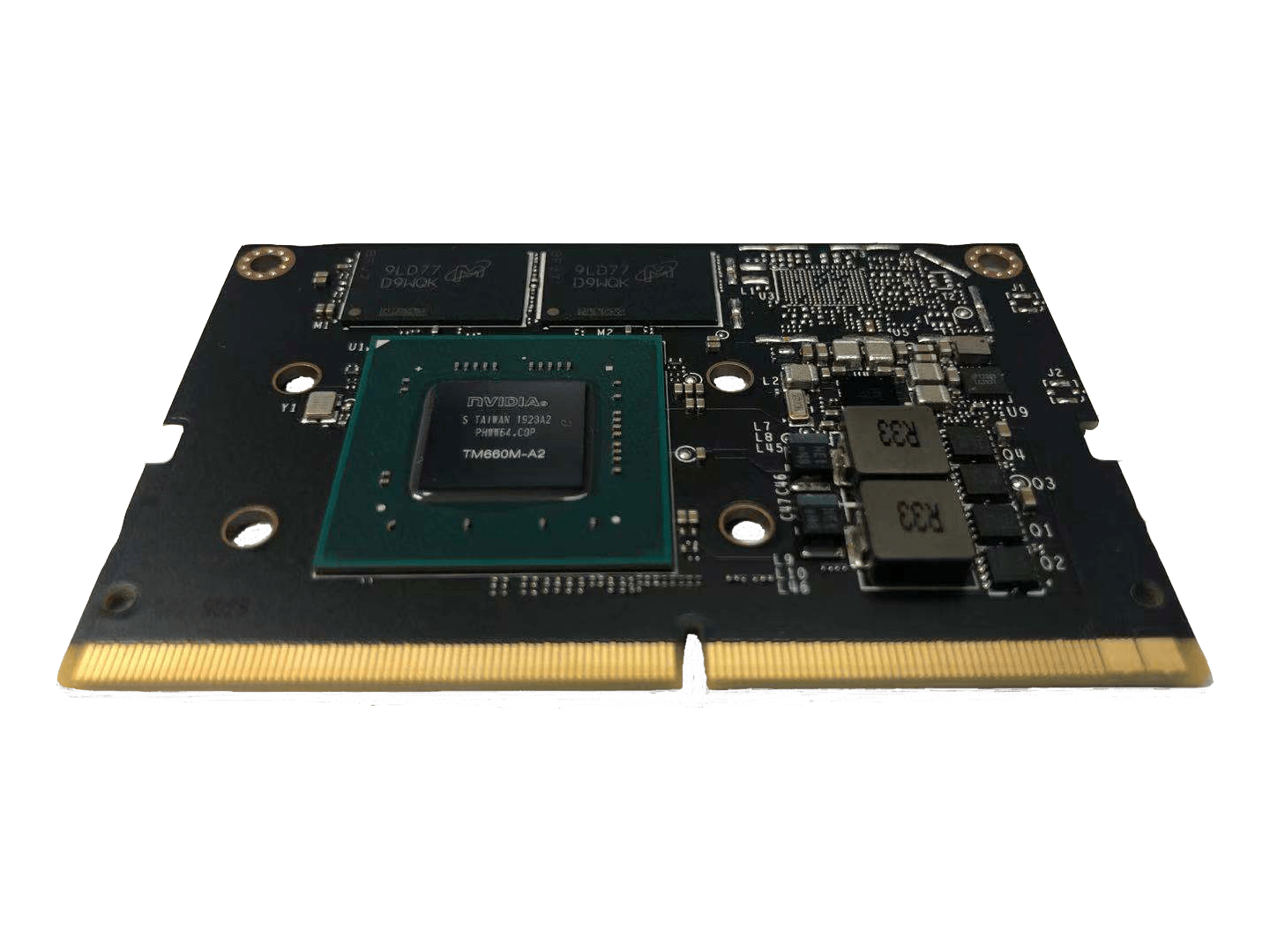

Jetson Nano Technical Specifications |
|
|
GPU
|
NVIDIA Maxwell? architecture with 128 NVIDIA CUDA® cores
0.5 TFLOPs (FP16)
|
|
CPU
|
Quad-core ARM® Cortex®-A57 MPCore processor
|
|
Memory
|
4 GB 64-bit LPDDR4
1600MHz - 25.6 GB/s
|
|
Storage
|
16 GB eMMC 5.1 Flash
|
|
Video Encoder
|
4Kp30 | 4x 1080p30 | 9x 720p30 (H.264/H.265)
|
|
Video Decoder
|
4Kp60 | 2x 4Kp30 | 8x 1080p30 | 18x 720p30 (H.264/H.265)
|
|
Camera
|
12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps)
|
|
Connectivity
|
Wi-Fi requires external chip
|
|
10/100/1000 BASE-T Ethernet
|
|
|
Display
|
HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous
|
|
UPYH
|
1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0
|
|
I/O
|
3x UART, 2x SPI, 2x I2S, 4x I2C, GPIOs
|
|
Size
|
69.6 mm x 45 mm
|
|
Mechanical
|
260-pin edge connector
|
