NVIDIA Jetson Embedded Systems

  • Jetson TX2 NX IPC SYS-2006
  • Jetson TX2 NX IPC SYS-2006
  • Jetson TX2 NX IPC SYS-2006
Jetson TX2 NX IPC SYS-2006Jetson TX2 NX IPC SYS-2006Jetson TX2 NX IPC SYS-2006

Jetson TX2 NX IPC SYS-2006

NVIDIA? Jetson TX2 NX, which can provide 1.33 TFLOPS of computing power in 15W power mode, which is 2.5 times the computing power of Jetson Nano
with 256 CUDA Cores
6 ARM CPU cores
4 GB 128-bit DDR4 memory, it can run multiple network models simultaneously

Feature

* NVIDIA Jetson Carrier Board:

Support NVIDIA Jetson Nano/TX2NX Module

* Versatile Connectivity:
Offer 1x RJ45, 2x USB 3.0, 1x USB 2.0, 1x HDMI and 1x USB Micro B

* Advanced Peripherals Supported:
Assemble 1x TF slot, 1x Nano SIM, 2 RS232, 3x GPIO, 1x GPO

* Input Power: DC +9V~+24V

* Compact and Durable during Operation:
Design in small size of 160mm*133mm*90mm to save operation space, and maintain function in the temperature range from -20°C to 65℃


* Expansion:

4G communication module, WIFI/Bluetooth module, Video capture/output module, Multi I/O module.


Product Name
 TX2NX-SYS-2006
Jetson Module Supported
 NVIDIA Jetson TX2 NX
AI Processor 1.33 TFLOPS
GPU 256-core NVIDIA Pascal? architecture GPU
CPU Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor

Memory

8GB 128-bit LPDDR4x
59.7GB/s

Storage

16GB eMMC 5.1

Video Encode

1x 4K60 (H.265)
3x 4K30 (H.265)
4x 1080p60 (H.265)
Video Decode
 2x 4K60 (H.265)
7x 1080p60 (H.265)
14x 1080p30 (H.265)
CSI Camera
 Up to 5 cameras
(12 via virtual channels)12 lanes MIPI CSI-2D-PHY 1.1 (up to 30 Gbps)
Networking
 1x Gigabit Ethernet(10/100/1000 BAST-T) RJ45
USB
 2x USB 3.0 Type-A
1x USB 2.0
1x Micro USB

Display

1x HDMI

Other I/O 1x Micro TF，1x Nano SIM，2x RS232，3x GPIO，1x GPO

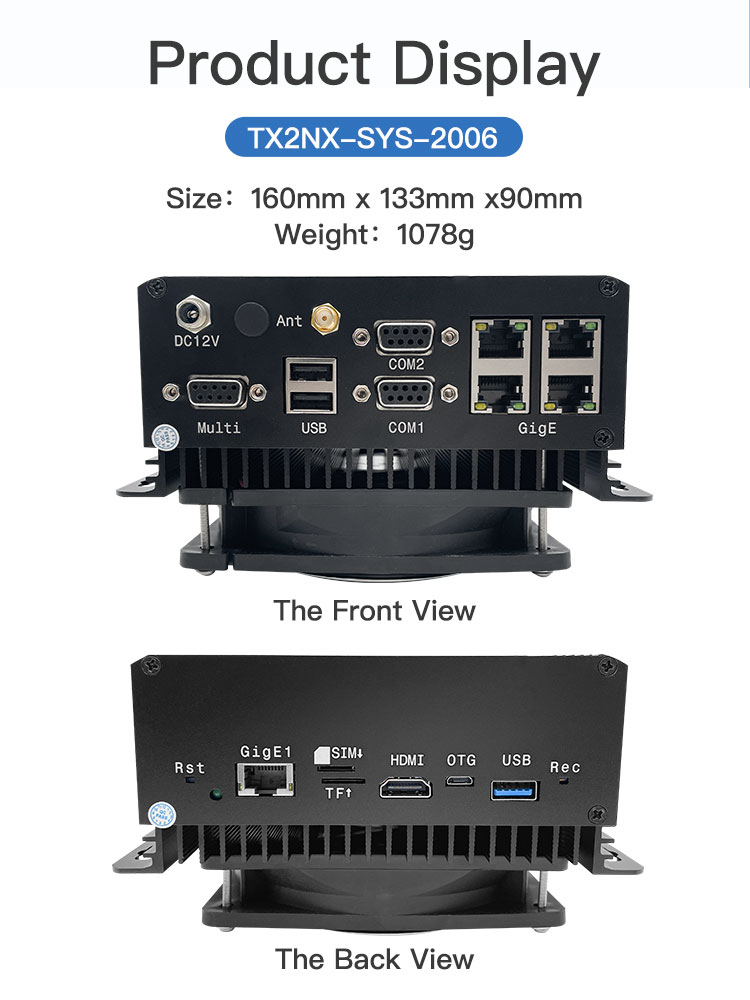

Mechanical

160mm x 133mm x 90mm
Weight 1078g
Operating Temperature
 -20℃~+65℃
Power DC +9V～+24V


Application

* robots and robotics

* face recognition
* Unmanned boats/cars
* Industrial automation and control systems
* Digital signage and media players
* IoT (Internet of Things) and embedded systems

* Education and prototyping projects
