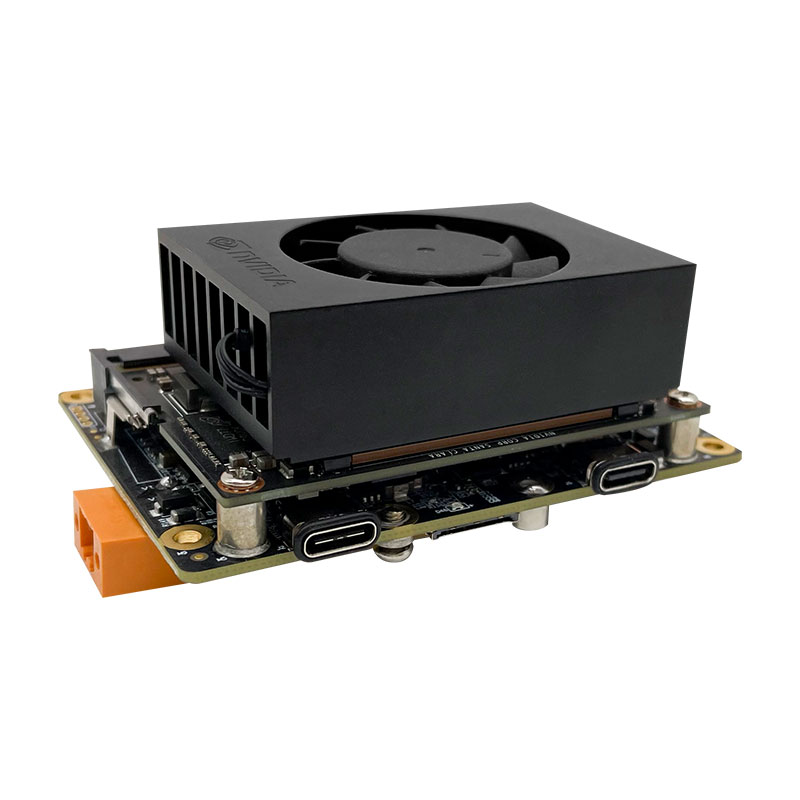

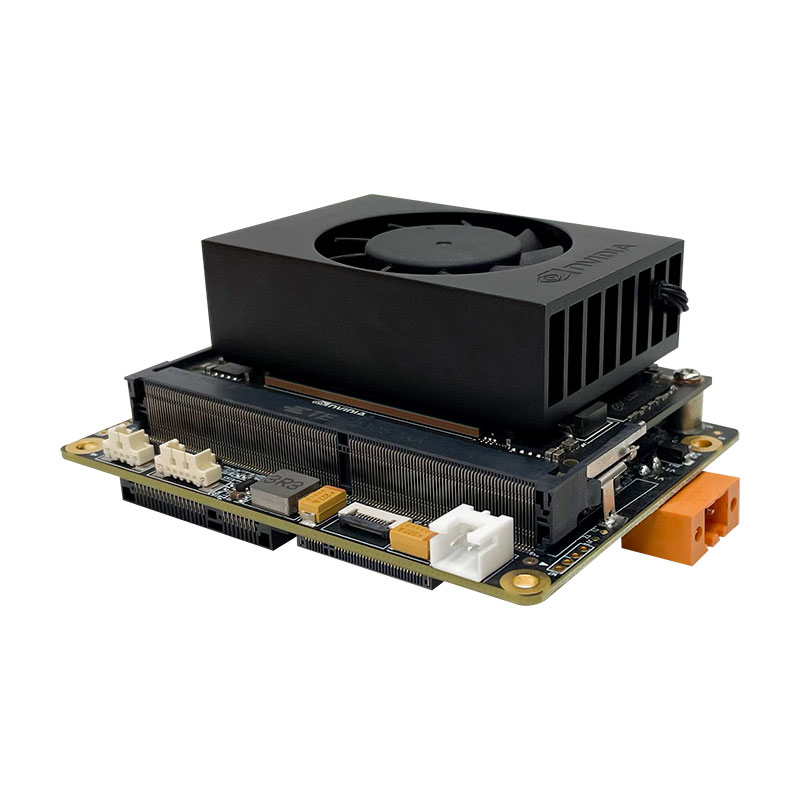

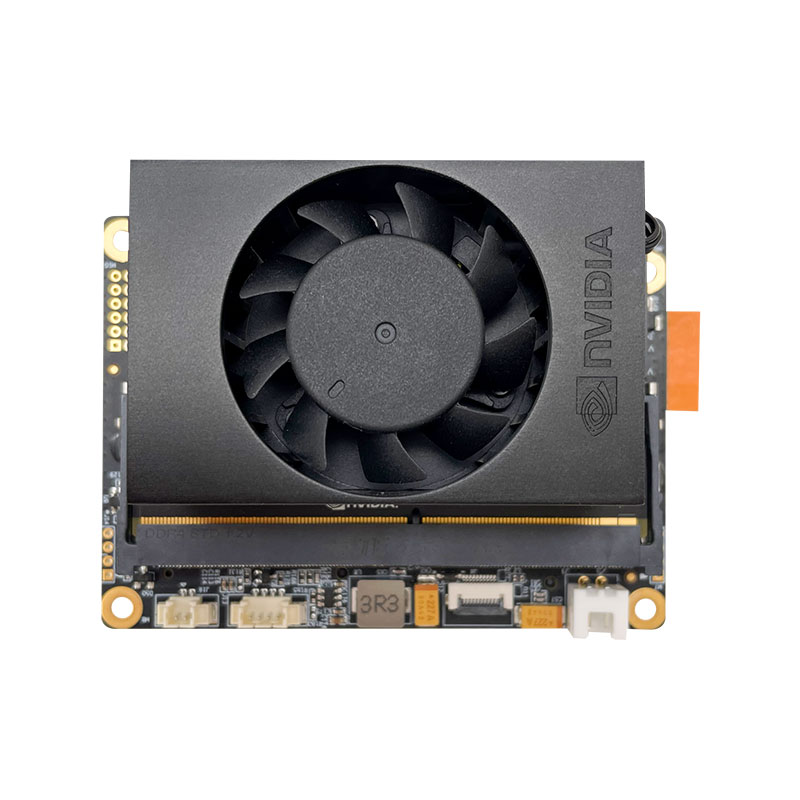

Y-C17-DEV是基于NVIDIA Jetson Xavier? NX、NVIDIA Jetson ORIN? NX和NVIDIA Jetson ORIN? NANO模塊驅動的Plink AI自研開發系統。所有元器件均為寬溫型，具有多種外部接口。通過MiniPCIe連接器(包括USB 2.0和PCIe X1信號)可承載數百個功能模塊，實現系統功能的進一步擴展。Y-C17載板M.2 B Key插槽可直接承載4G/5G通信模塊，載板自帶Nano SIM卡槽。
2 x Type-C連接器
1 x Nano型SIM卡連接器
1 x 全長MiniPCIe連接器
1 x M.2 2230 M key槽位
1 x M.2 3050 B key槽位(可擴展4G/5G通信模塊)
1x2 Lane MIPI相機接口FPC連接器
1 x 3.3V RTC供電接口
1 x風扇控制接口(5V)
上電自動開機
防脫落電源接線端子
板卡尺寸:85mm * 63mm * 35mm
電源輸入:DC +12V~+24V
工作溫度:-25 ~ +65°C
重量:125g
NVIDIA Jetson Orin NX與NVIDIA Jetson Orin Nano模組參數
|
|
Jetson Orin NX 16GB |
Jetson Orin NX 8GB |
Jetson Orin Nano 8GB |
Jetson Orin Nano 4GB |
Jetson Xavier NX 16GB |
Jetson Xavier NX 8GB |
|
AI Perf |
100 TOPS |
70 TOPS |
40 TOPS |
20 TOPS |
21 TOPS |
|
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
384-core NVIDIA Volta? architecture GPU with 48 Tensor Cores |
||
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
||
|
Memory |
16GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 102.4GB/s |
8GB 128-bit LPDDR5 68 GB/s |
4GB 64-bit LPDDR5 34 GB/s |
16GB 128-bit LPDDR4x 59.7GB/s |
8GB 128-bit LPDDR4x 59.7GB/s |
|
Storage |
- (Supports external NVMe) |
16GB eMMC 5.1 |
||||
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
1080p30 supported by 1-2 CPU cores |
2x 4K60 (H.265) 4x 4K30 (H.265) 10x 1080p60 (H.265) 22x 1080p30 (H.265) |
|||
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265) |
|||
|
CSI Camera |
Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
Up to 6 cameras (24 via virtual channels) 14 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
|||
|
PCIe |
1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) |
1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint) |
1 x4 (PCIe Gen4) + 1 x1 (PCIe Gen3) |
|||
|
USB |
3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
1x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
|||
|
Power |
10W - 25W |
10W - 20W |
7W - 15W |
7W - 10W |
10W - 20W |
|
| Mechanical |
69.6mm x 45mm 260-pin SO-DIMM connector |
|||||
