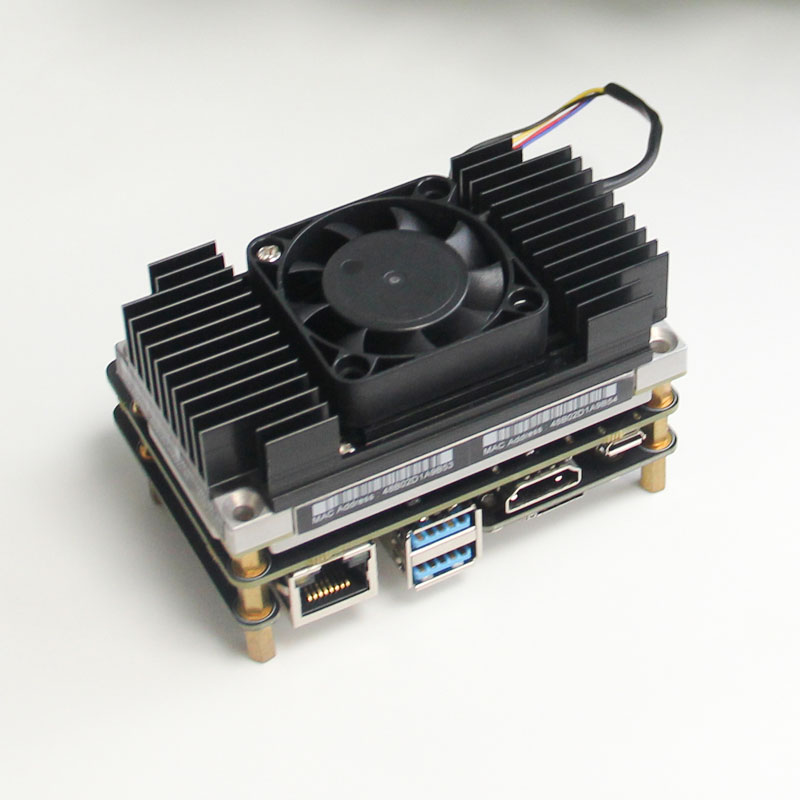

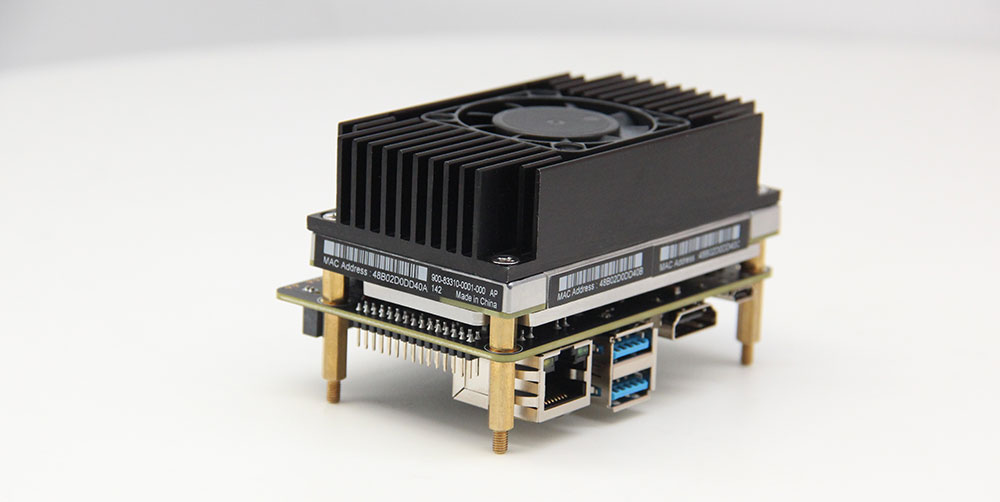

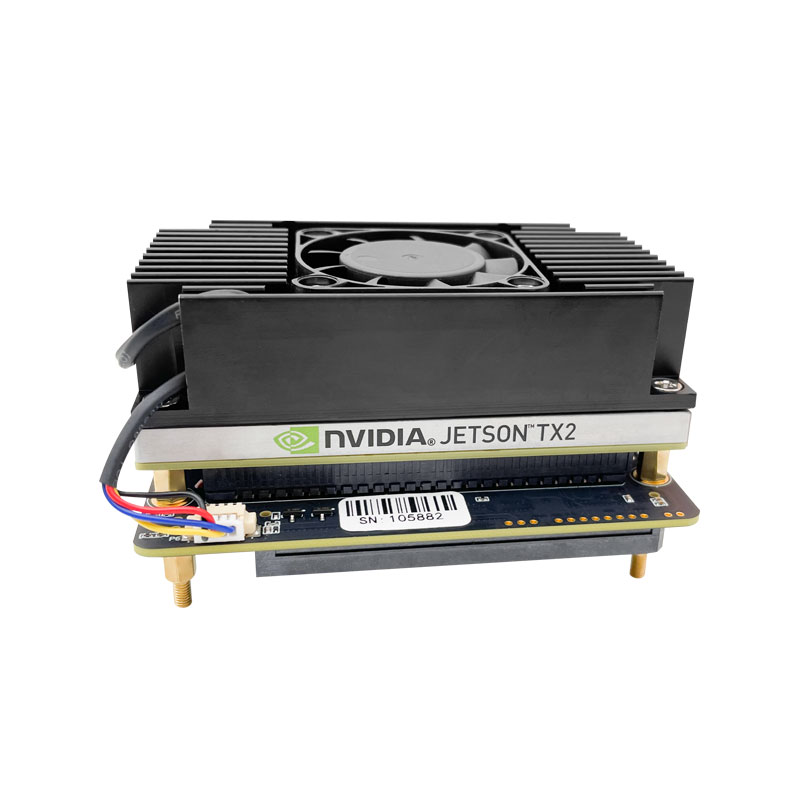

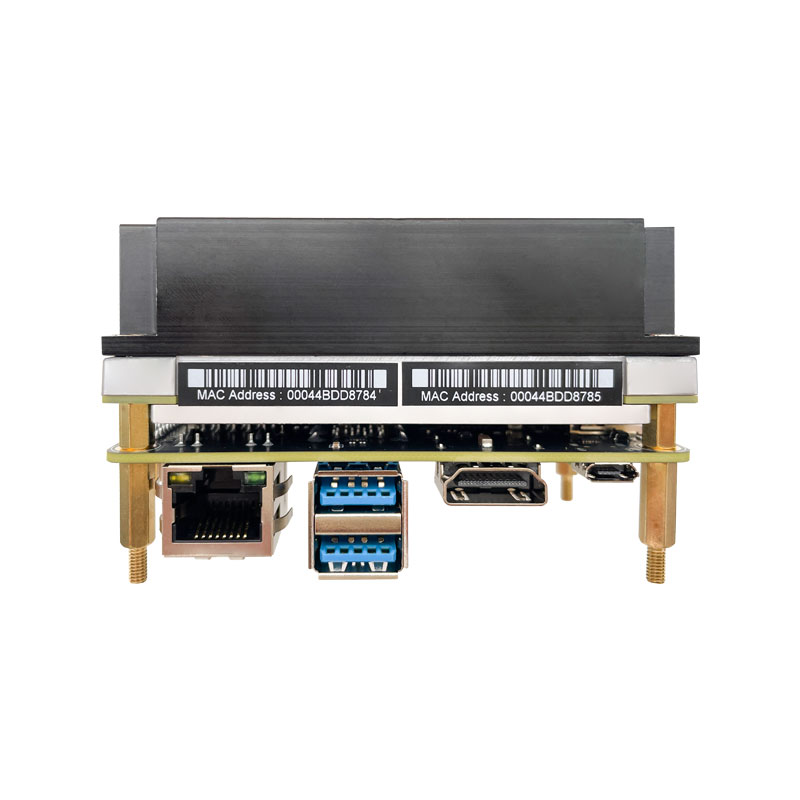

* 適配模組:NVIDIA Jetson TX2 8G/TX2i Module
* 擴(kuò)展功能:
1x30-pin expansion header, 1xHigh-Speed signal expension connector
| 產(chǎn)品型號 | Y-C1-DEV |
| 適配模組 | NVIDIA Jetson TX2 8G/TX2i |
| Networking | 1x Gigabit Ethernet (10/100/1000 BASE-T) RJ45 |
| USB |
2x USB 3.0 1x Micro USB |
| Display | 1x HDMI |
| FAN | 1x FAN |
| 尺寸 | 87mm*60mm*55mm |
| 重量 | 247g |
| 工作溫度 | -20℃~+65℃ |
NVIDIA Jetson TX2 Series ModuleTechnical Specifications
|
|
Jetson TX2 8GB |
Jetson TX2 Industrial |
| AI Performance | 1.33 TFLOPS | 1.26 TFLOPS |
| GPU |
NVIDIA Pascal? architecture with 256 NVIDIA CUDA cores 1.3 TFLOPS (FP16) |
|
| CPU | Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex | |
| Memory |
8 GB 128-bit LPDDR4 59.7 GB/s |
8GB 128-bit LPDDR4 (ECC Support) 51.2GB/s |
| Power | 7.5W | 15W | 10W - 20W |
| PCIe |
up to 1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2) |
|
| CSI Camera |
Up to 6 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
|
| Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 4x 1080p60 (H.265) |
|
| Video Decode |
2x 4K60 (H.265) 7x 1080p60 (H.265) 14x 1080p30 (H.265) |
|
| Display |
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane) |
|
| Networking | 1x GbE, WLAN | 1x GbE |
| Mechanical |
87mm x 50mm 400-pin connector Integrated Thermal Transfer Plate |
|
