  • Leadtek Station WS2030

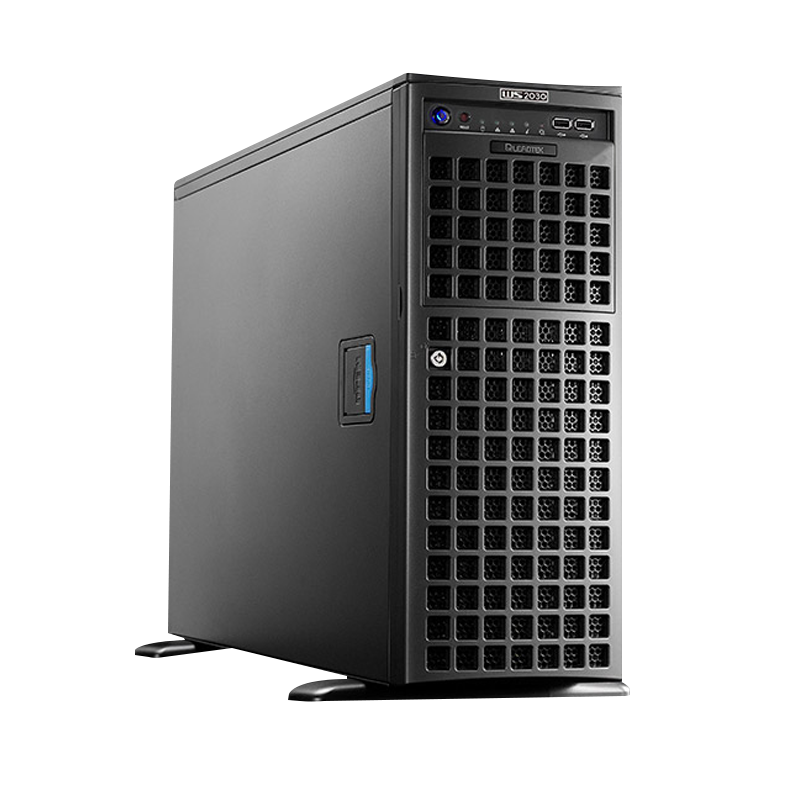

Leadtek Station WS2030

Leadtek Station WS2030

超高端工作站
?持 4 個 GPU
高性能運算
AI / 深度學習 / 3D 渲染

產品規格

處理器
中央處理器
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Support CPU TDP 70-205W
  • Up to 28 Cores

系統內存

內存容量
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane? DCPMM;
內存種類 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

內建裝置

芯片組 Intel® C621 chipset
SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
網絡
  • Intel® X550 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI 數字平臺管理界面 Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

輸入 / 輸出

SATA 10 SATA3 (6Gbps) ports
NVMe 1 NVMe support with M.2 Socket
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
  • 4 USB 2.0 ports (2 rear, 2 via headers)
Video 1 VGA port
Audio 7.1 HD Audio with optical S/PDIF
Serial Port/Header 2 COM ports (1 rear, 1 Header)

外觀形態

  • 4U 機架式/塔式
  • 滑軌（選購）

尺寸與重量

高度 18.2" (462mm)
寬度 7.0" (178mm)
深度 26.5" (673mm)
重量
  • Net Weight: 46 lbs (20.9 kg)
  • Gross Weight: 62 lbs (28.1 kg)

磁盤槽 / 存儲

  • 8 Hot-swap 3.5" drive bays
  • Optional 4x 2.5" NVMe supported
  • 1 M.2 (M-key, 2260/2280/22110)

擴充插槽

PCI-Express
  • 4 PCI-E 3.0 x16 (double-width) slots
  • 2 PCI-E 3.0 x16 (single-width) slots
  • 1 PCI-E 3.0 x4 (in x8 slot)
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key

系統散熱

風扇
  • 4 Heavy duty fans
  • 2 Rear exhaust fans
  • 2 Optional Rear fans (required for Passive GPUs)

電源供應器

2200W Redundant Power Supplies with PMBus, Titanium Level Certified
全部輸出電源
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
交流電輸?頻率 50-60Hz

支持操作系統

  • Windows Server 2016/2019
  • RHEL 7.3 or later
  • Ubuntu 18.04 LTS

操作環境

RoHS RoHS Compliant
環境規格
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
