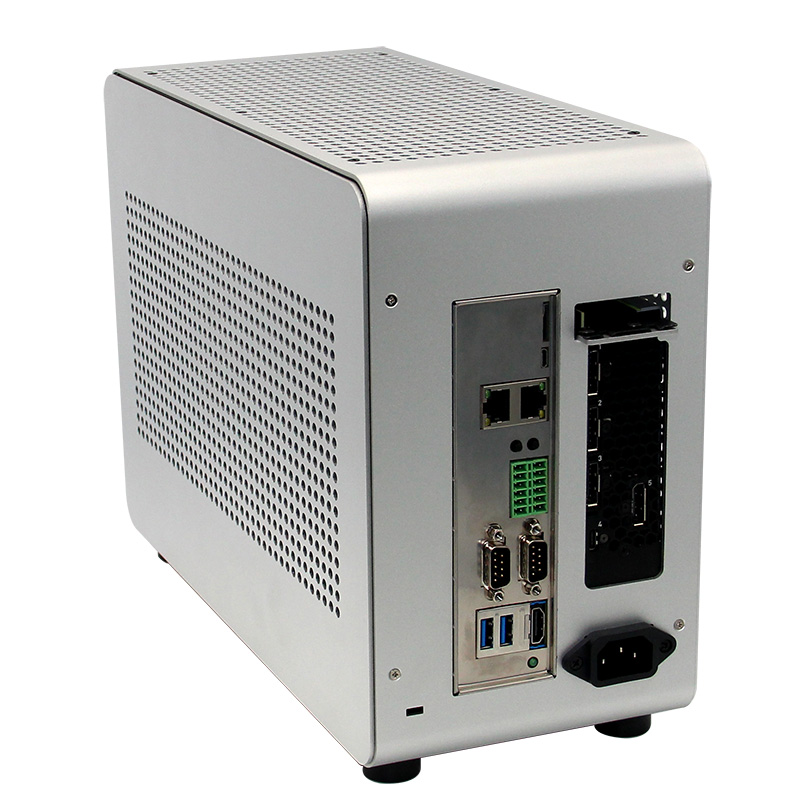

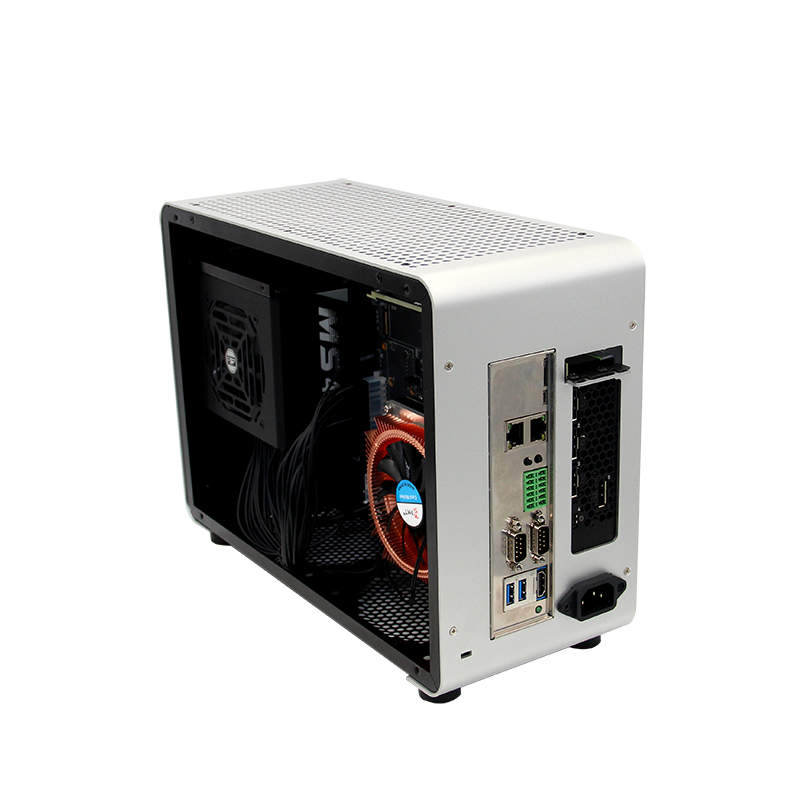

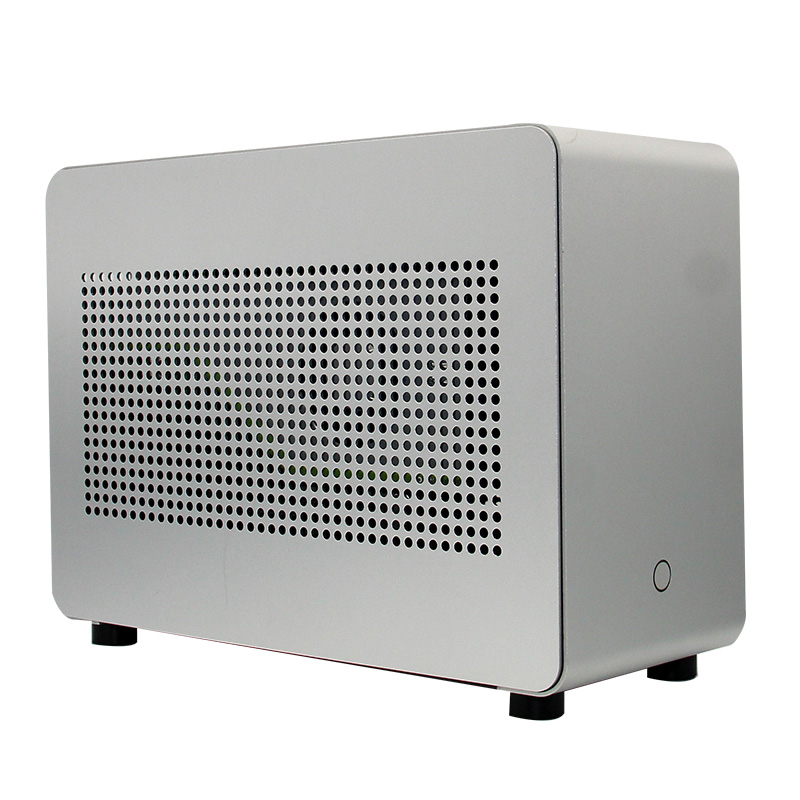

NVIDIA Jetson AGX Xavier/AGX Orin
Y-C8
COMPONENTS
FUNCTION

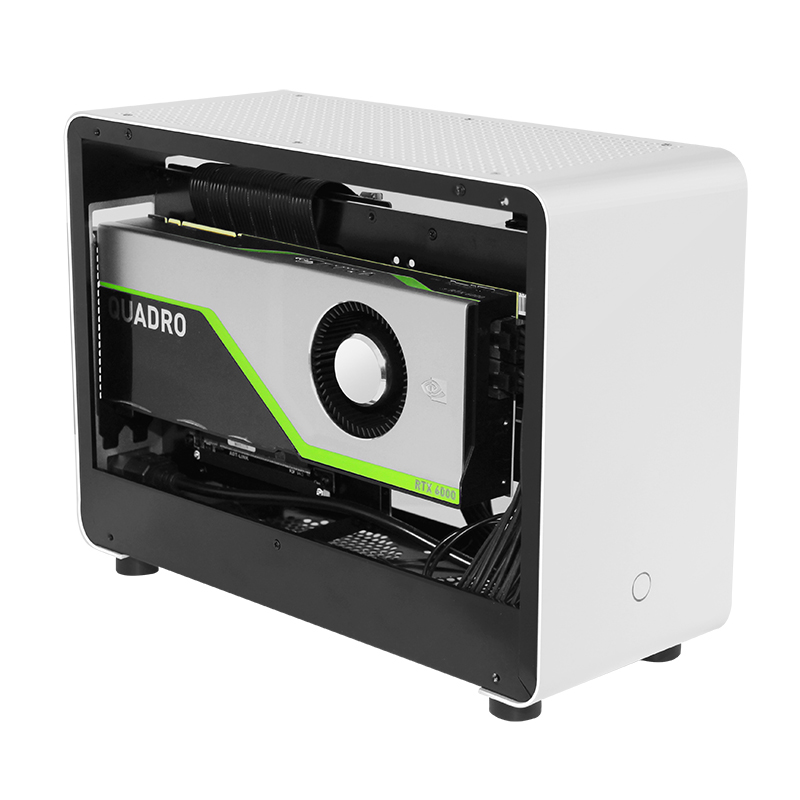

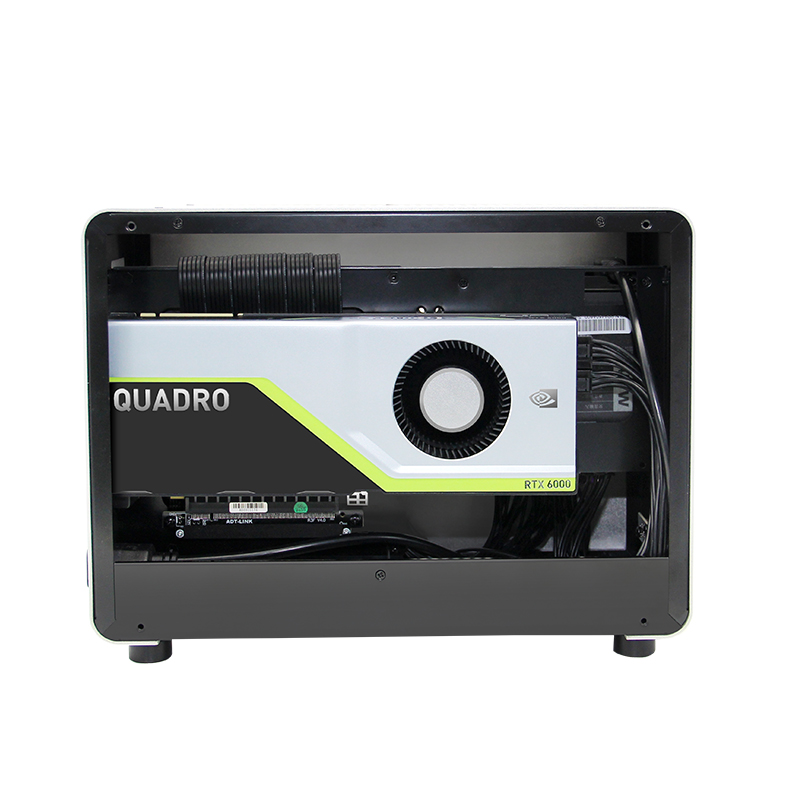

NVIDIA RTX 6000/A6000
Discrete GPU
GPU and IO processing
512 NVME SSD
Removable storage

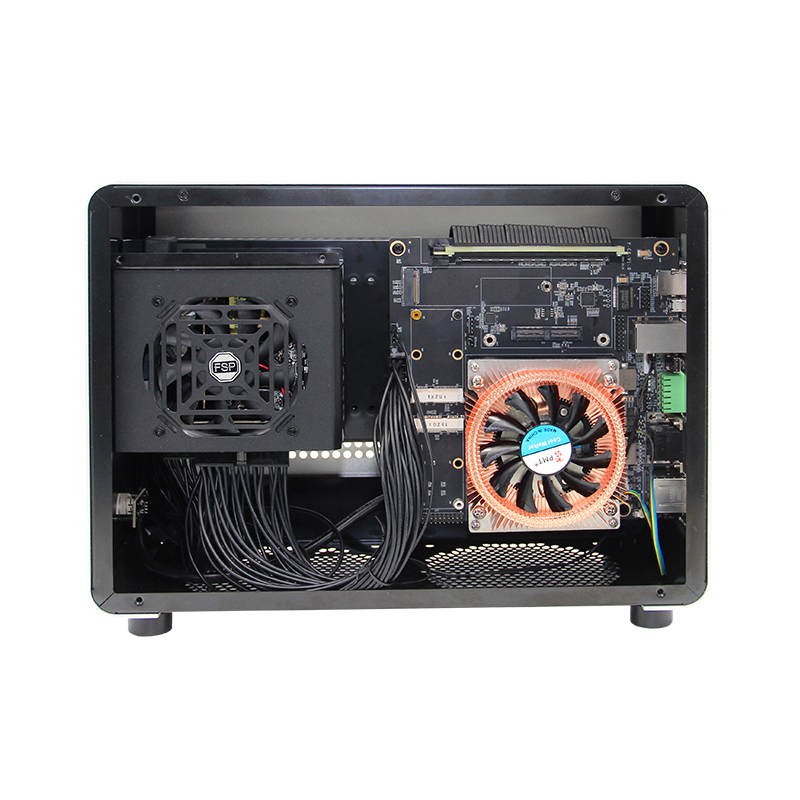

Develop system board
| Display | NVIDIA Jetson Module | Discrete GPU | ||
| Module | AGX Xavier 32G | AGX ORIN 32G | AGX ORIN 64G | RTX 6000 |
|
AI Performance |
32 TOPS |
200 TOPS |
275 TOPS |
|
| CPU |
8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3 |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
|
| CPU Memory |
32GB 256-bitLPDDR4 x 136.5GB/s |
32GB 256-bit LPDDR5 204.8 GB/s |
64GB 256-bit LPDDR5 204.8 GB/s |
|
| GPU |
512-core NVIDIA Volta GPU with 64 Tensor Cores |
NVIDIA Ampere architecture with 1792 NVIDIA CUDA® cores and 56 tensor cores |
NVIDIA Ampere architecture with 2048 NVIDIA CUDA® cores and 64 tensor cores |
4608-core NVIDIA Turing GPU with 576 Tensor Cores |
| USB Type-A |
1 x USB 3.1 1 x USB 2.0 |
2 x USB 3.1 |
- | |
| Micro USB | 1 x Type B (OTG) |
|||
| Other I/O |
4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS-232 1 x Debug(UART) 2 x CAN (with on-board transceiver) |
|||
| Networking | 2 x 10/100/1000 Ethernet/RJ45 |
1x GbE
1x 10GbE
|
|
|
| Power Supply | AC 220 V |
15W - 40W |
15W - 60W |
|
| Temperature | -20~+65°C |
|||
| Size | 335 mm × 257 mm × 146 mm |
|||
| Weight | 5500 g | |||
